PRODUCT DETAILS
IP67 DMX512 Programmable RGB Pixel String Lights
Chengyi Lighting’s DMX512 programmable pixel string lights turn every RGB light point into an individually controlled element for chasing, flowing-rainbow, gradient and synchronized full-pixel animations. Designed for commercial Christmas shows and outdoor decorative projects, the listed 10 m / 100 LED configuration combines glue-filled IP67 nodes with flexible H03RN heavy-duty rubber cable.
This show-oriented model is part of our DMX512 string lights collection. Waterproof signal connectors allow multiple sets to be linked into a synchronized installation when the controller, power distribution and signal topology are engineered for the approved pixel map.
Product Highlights
- Individual DMX512 pixel control: Programme every RGB node for chasing, gradients, flowing rainbows and coordinated show sequences.
- Christmas-show visual effects: Create animated trees, reindeer, stockings, curtains, façades and beat-synchronized festival patterns.
- Industrial IP67 sealing: Each LED bead is glue-filled and waterproof-sealed for demanding commercial outdoor installations.
- H03RN rubber cable: The listed heavy-duty cable uses a pure-copper core and is designed for flexibility, UV resistance and outdoor durability.
- Linkable synchronized system: Waterproof signal connectors support coordinated multi-string layouts for larger displays.
- Professional controller architecture: SN-510 master and EN-408 sub-controller options provide scalable DMX512 output for project installations.
Technical Specifications
| Model | CY SL |
|---|---|
| Standard Option | 10 m / 100 RGB LEDs |
| Light Source | Individually addressable RGB LED pixels |
| Control System | DMX512 single-point programmable control |
| Input Voltage | AC 85–265V listed for the product; controllers list AC 100–240V |
| Cable | H03RN heavy-duty rubber cable with pure-copper core |
| LED Sealing | Glue-filled waterproof-sealed pixel nodes |
| IP Rating | IP67 |
| CRI | Ra 80 listed |
| Luminous Efficiency | 100 lm/W listed |
| Luminous Flux | 700 lm listed |
| Working Temperature | -45°C to 60°C listed |
| Rated Life | 50,000 hours listed |
| Warranty | 2 years listed |
| Certifications | EMC, RoHS, LVD, CE and EN 60598 listed |
| MOQ | 50 meters |
DMX512 Controller Capacity

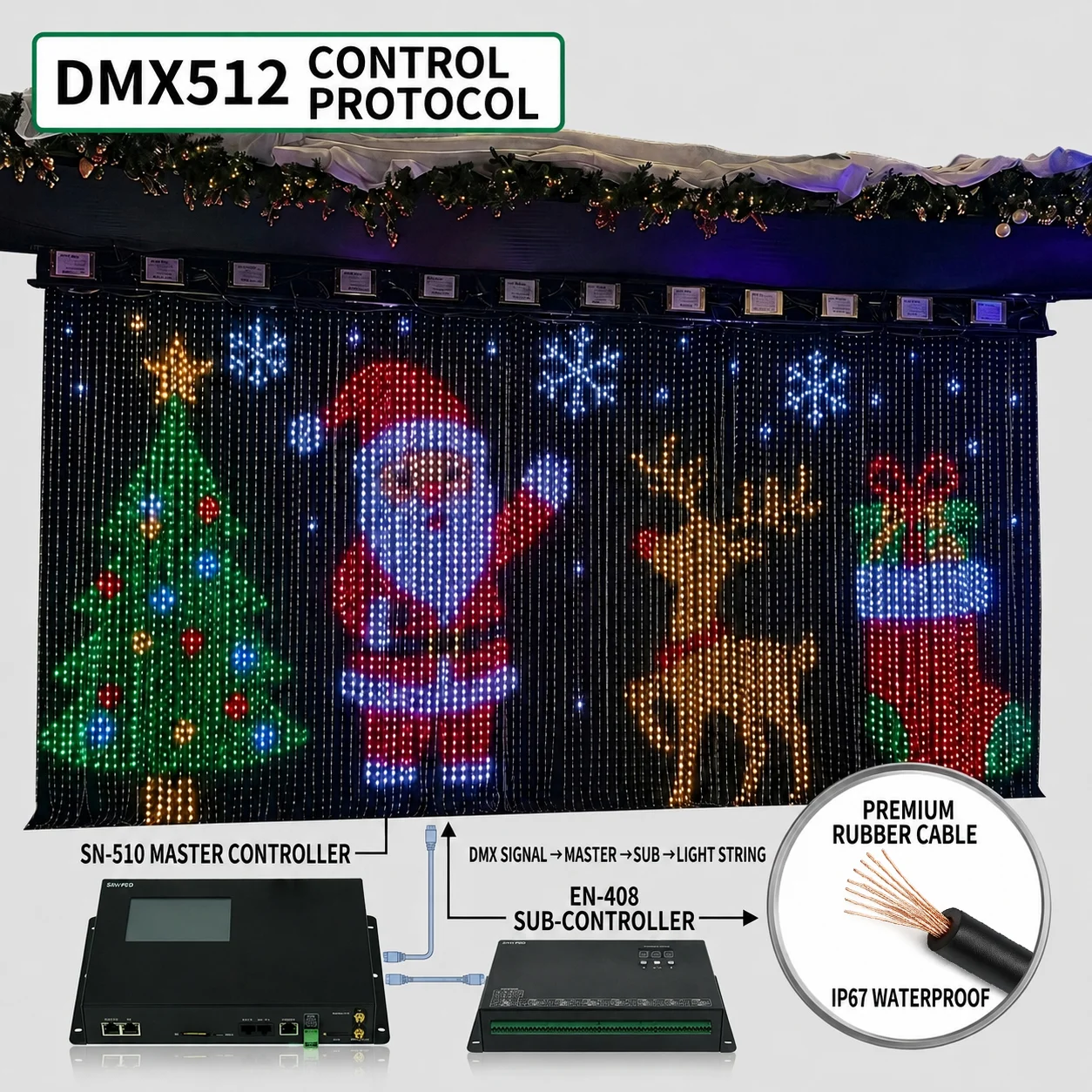

The listed SN-510 master controller uses SW Ethernet and supports up to 360,000 channels at 25 fps or 450,000 channels at 20 fps, with a maximum of 100 controllers. The EN-408 sub-controller provides eight TTL or RS-485 outputs. Its listed modes include standard DMX512 at 512 channels per port, extensible DMX at 1,024 channels per port and break-point-resume or 65,536-level grayscale modes at up to 2,160 points per port. Final controller quantities must be calculated from the selected pixel protocol, frame rate, grayscale and approved show design.
Commercial Applications
- Christmas light shows and animated holiday scenes
- New Year, carnival and festival installations
- Theme parks, plazas and municipal landscapes
- Shopping centres, hotels and entertainment venues
- Stage backdrops, concerts and beat-synchronized displays
- Building façades, light curtains and outdoor pixel matrices
OEM Programming and Project Engineering
Available project options include string length, pixel quantity and spacing, input voltage, cable layout, connector format, RGB animation programming, drawing-based customization, sample development, controller selection, OEM branding and export packaging. Browse the outdoor decorative lighting product centre or contact Chengyi Lighting with installation drawings, total dimensions, viewing distance, pixel spacing and target effects for a project-specific quotation.
