PRODUCT DETAILS
IP67 DMX512 Addressable RGB Pixel String Lights
Chengyi Lighting’s architectural-grade DMX512 addressable RGB pixel string lights are engineered for large, permanent digital-lighting installations. Each LED point can be mapped and controlled to create text, graphics, colour gradients and synchronized 2D or 3D animation across media façades, plaza installations and atrium displays.
This model belongs to our DMX512 string lights collection. The listed configuration is 10 m with 100 LEDs, built on H03RN-F heavy-duty rubber cable and sealed with potted epoxy resin for IP67 outdoor protection.
Project Advantages
- Individually addressable RGB pixels: Programme every light point for dynamic colour, text and image effects.

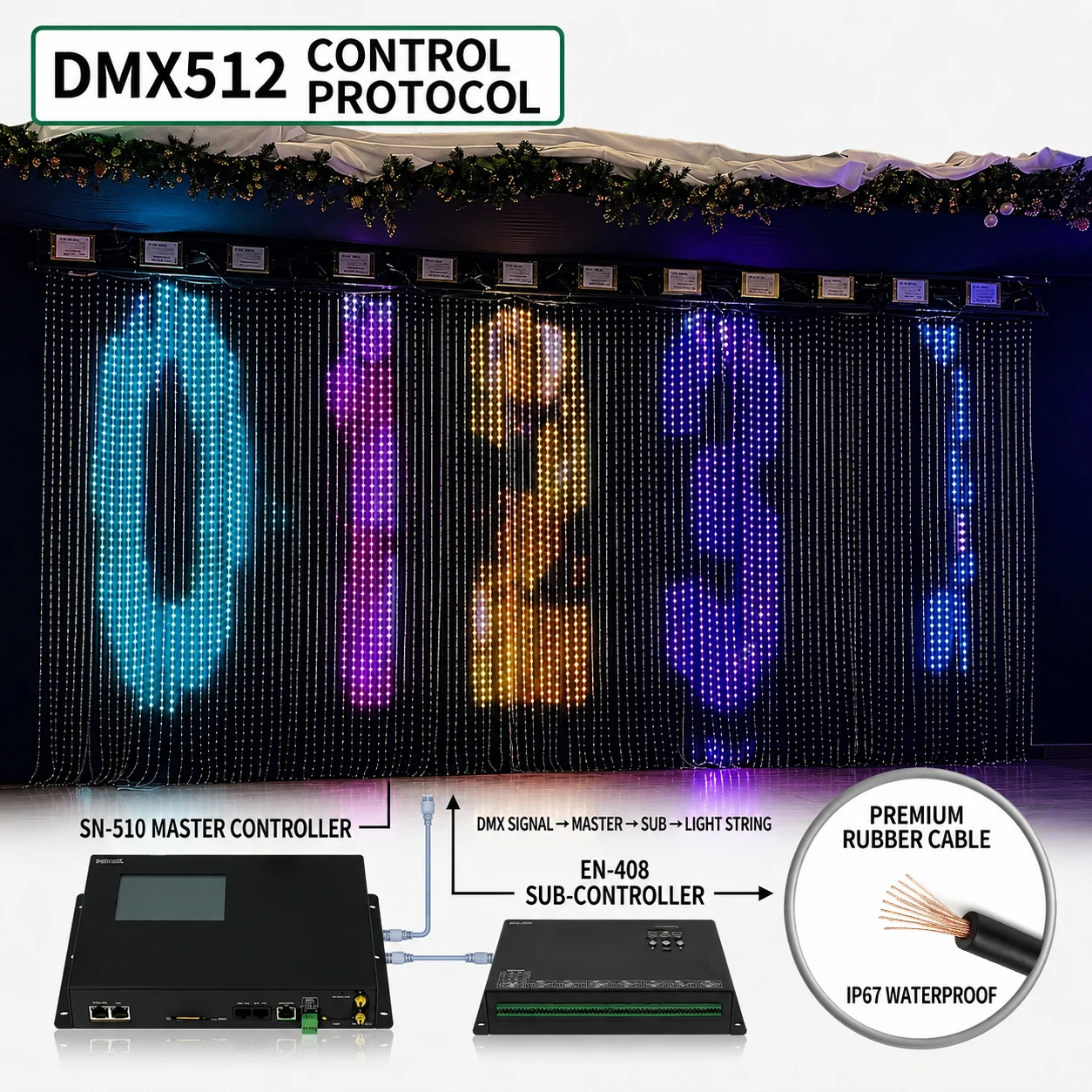

- Professional DMX architecture: The SN-510 master controller and EN-408 sub-controller system supports DMX512, Art-Net, sACN and SW Ethernet workflows.
- Fault-tolerant signal path: Dual-signal backup and break-point resume help the remaining pixels continue operating if one point fails.
- IP67 potted construction: Each node is glue-filled with industrial epoxy resin for outdoor resistance to moisture and demanding weather.
- H03RN-F rubber cable: Heavy-duty black rubber construction with a listed 20 AWG pure-copper core supports flexible, long-term commercial installation.
- Scalable synchronized control: Multi-controller synchronization can be planned for extensive façades and venue-wide installations.
Technical Specifications
| Model | CY SL |
|---|---|
| Standard Configuration | 10 m / 100 individually addressable RGB LEDs |
| System Input | AC 85–265V listed; SN-510 and EN-408 controllers list AC 100–240V input |
| Control Protocols | DMX512, Art-Net, sACN and SW Ethernet |
| Controller Architecture | SN-510 master controller with EN-408 sub-controller |
| EN-408 Outputs | 8 TTL and RS-485 output ports |
| Signal Protection | Dual-signal backup and break-point resume |
| Grayscale | 65,536 levels listed |
| Material | H03RN-F heavy-duty rubber cable with pure-copper core |
| Sealing | Potted epoxy resin / glue-filled LED nodes |
| IP Rating | IP67 |
| Working Temperature | -45°C to 60°C listed for the light-string system |
| Rated Life | 50,000 hours listed |
| Warranty | 2 years listed |
| Certifications | EMC, RoHS, LVD, CE and EN 60598 listed |
| MOQ | 50 meters |
Controller Capacity
The SN-510 master controller lists up to 360,000 channels at 25 fps or 450,000 channels at 20 fps and can manage up to 100 controllers. Each EN-408 provides eight output ports, with channel capacity determined by the selected chip mode, DMX format and grayscale requirement. Final capacity must be calculated from the approved pixel map and animation design.
Applications
- Building-envelope and media-façade animation
- Shopping-mall and hotel atriums
- Plazas, municipal landmarks and public spaces
- Concert venues, stages and opening ceremonies
- Carnivals, festivals and large outdoor events
- Architectural curtains, cascades and digital wall matrices
OEM, Programming and Engineering Support
Available project services include lighting and circuitry design, AutoCAD layout, pixel mapping, controller selection, programme development, custom voltage, colour configuration, cable layout, sample-based development, OEM branding and export packaging. Explore the outdoor decorative lighting product centre or contact Chengyi Lighting with façade drawings, pixel spacing, viewing distance and animation requirements for an engineered quotation.
