PRODUCT DETAILS

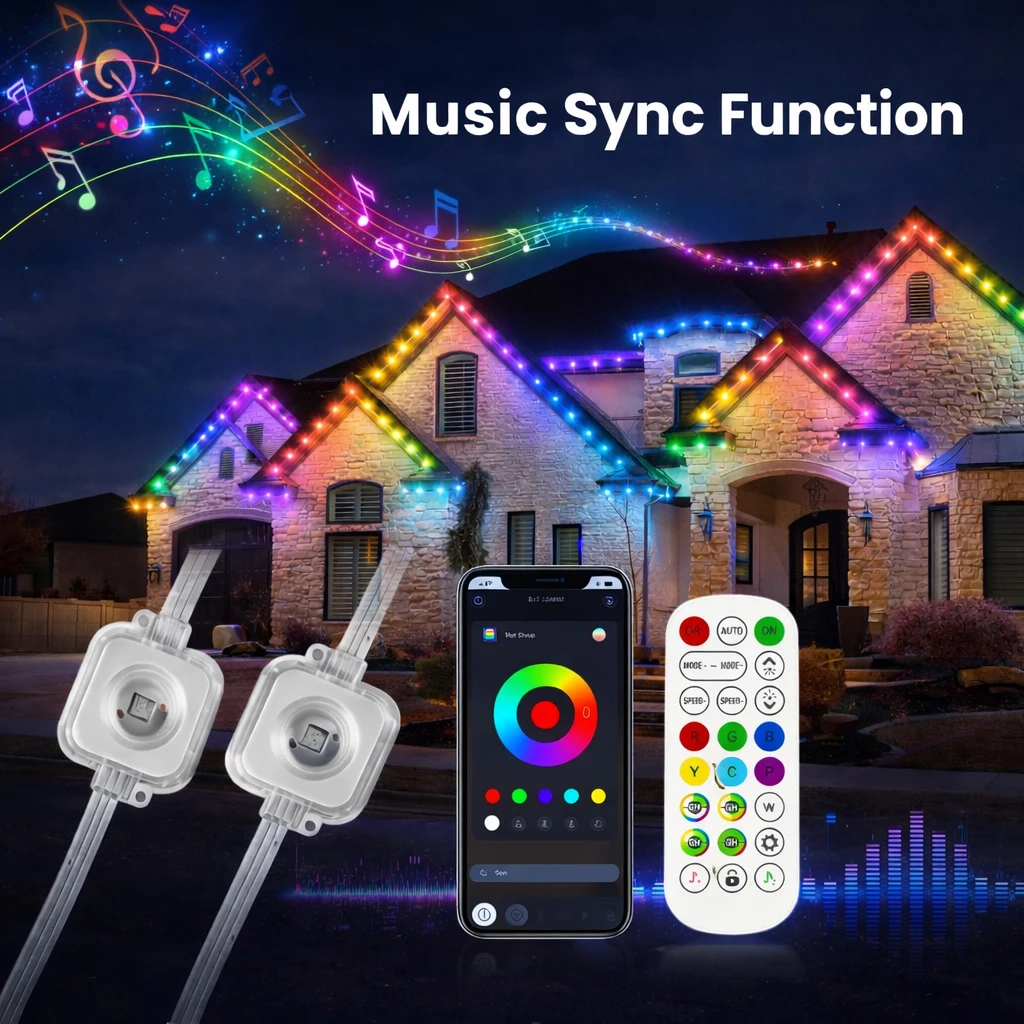

24V RGBIC Permanent Outdoor Roofline Lights
Chengyi Lighting’s permanent outdoor roofline lights are designed for fixed decorative installation along eaves, soffits, fascia boards and building outlines. Each system uses DC24V SMD 5249 RGBIC point lights in durable PC housings, creating multicolour architectural effects without the repeated installation and removal required by temporary seasonal lighting.
The addressable RGBIC system can control individual light points to produce chasing, flowing, gradient and multi-zone colour effects. App control, remote control and music-synchronised programmes make the system suitable for everyday architectural ambience as well as Christmas, festival and promotional displays.
Product Highlights
- Individually addressable RGBIC LEDs: Built-in IC control supports flowing, chasing, gradient and multicolour effects across the roofline.
- SMD 5249 LED technology: The listed 0.5W LED points provide stable brightness and a broad viewing angle for continuous building outlines.
- DC24V low-voltage platform: Low-voltage operation helps reduce heat and supports professional outdoor system design.
- IP67 point-light modules: PC housings are designed for outdoor dust and water exposure when installed with properly sealed connectors and compatible power equipment.
- Smart control options: App, handheld remote and music-sync functions support flexible scene selection and event programming.
- Permanent modular installation: Snap-fit PC housings and mounting components simplify alignment along eaves and façades.
Standard System Lengths
| System Length | Imperial Length | LED Points | Listed Point Spacing |
|---|---|---|---|
| 15 m | 49.2 ft | 30 LEDs | Approx. 500 mm |
| 30 m | 98.4 ft | 60 LEDs | Approx. 500 mm |
| 45 m | 147.6 ft | 90 LEDs | Approx. 500 mm |
| 60 m | 196.8 ft | 120 LEDs | Approx. 500 mm |
Custom project lengths, point spacing, cable arrangements and mounting layouts are subject to engineering confirmation.
Technical Specifications
| Model | CY EL / SMD 5249 |
|---|---|
| Input Voltage | DC24V |
| Power | 0.5W per LED point |
| Light Source | SMD 5249 RGBIC LED |
| Housing Material | PC |
| IP Rating | IP67 |
| Emitting Colour | Changeable; RGB and RGBW configurations available subject to confirmation |
| White CCT Options | 2700K, 3500K, 4100K, 5000K and 6000K |
| Luminous Flux | 25 lm per listed lamp point |
| CRI | Ra 80 |
| Working Temperature | -20°C to 50°C |
| Rated Lifespan | 50,000 hours |
| Warranty | 1 year |
| Standard MOQ | 20 sets |
Smart RGBIC Lighting Control
RGBIC technology allows different light points to display different colours at the same time. Depending on the confirmed controller and software configuration, buyers can select static colours, gradients, chasing sequences, flowing effects and music-responsive scenes. RGB and RGBW versions can be discussed for projects that require both dynamic colour and dedicated white-light output.
Designed for Permanent Outdoor Installation
The IP67 LED modules and PC snap-fit housings are intended for long-term roofline and façade use. Overall system performance also depends on correct cable routing, waterproof connectors, suitable power-supply loading, drainage, mounting quality and local electrical practice. Chengyi Lighting can support AutoCAD layout, lighting planning and circuitry design for project orders.
Applications
- Villa and residential eaves
- Hotel, resort and restaurant rooflines
- Shopping centre and retail façades
- Commercial buildings and entertainment venues
- Permanent Christmas and holiday lighting
- Landscape architecture and building-outline projects
Customisation for B2B Projects
Available project options include system length, point spacing, housing colour, cable layout, RGB or RGBW configuration, controller functions, programmed scenes, power supplies, extension cables, connectors, mounting accessories, OEM branding and export packaging.
Packaging Reference
The Alibaba listing gives a reference single-package size of 24 × 13 × 26 cm and a gross weight of 2.0 kg. Final carton dimensions, weight and packing quantity depend on the selected system length, accessories and order quantity and must be confirmed before shipment.
Information Required for a Quotation
Please send the total roofline length, building drawings or site photos, preferred point spacing, required colour effects, controller requirements, quantity, destination country and delivery schedule. Our team will confirm the appropriate system configuration, power distribution and quotation.
