PRODUCT DETAILS

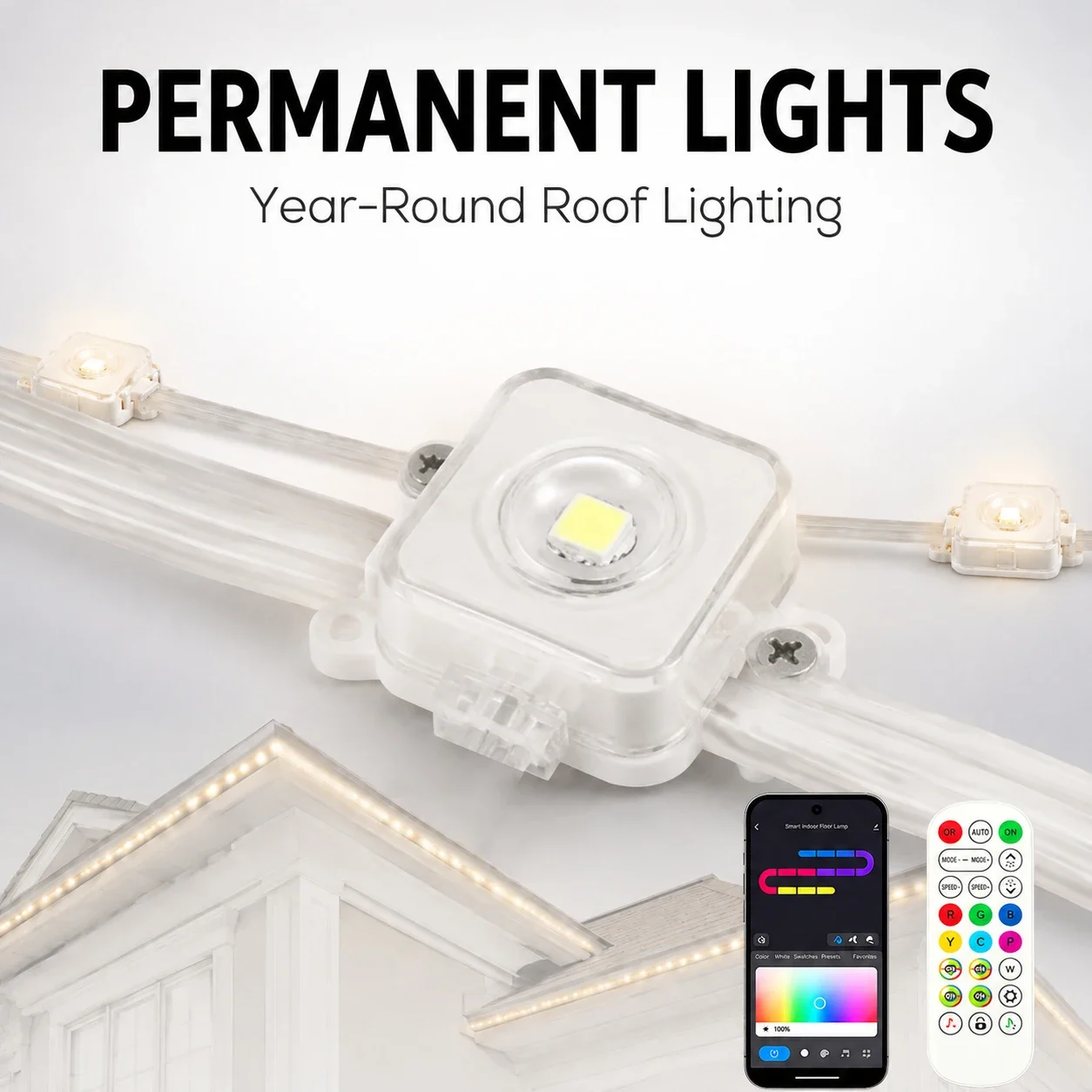

24V RGBIC Chasing Eave Roofline Lights
Chengyi Lighting’s 24V RGBIC chasing eave lights create flowing rainbow colour, animated chases and programmable architectural effects along soffits, fascia boards and roof edges. This model expands our Eave Lights collection with a 10 m, 20-light configuration designed for permanent residential, hospitality and commercial installations.
Each light point uses a high-brightness SMD 5249 RGBIC LED inside a sealed plastic housing. Individually addressable control allows different points to display different colours at the same time, producing continuous running, gradient, chasing and music-responsive effects that standard single-colour roofline lighting cannot reproduce.
Product Highlights
- RGBIC animated effects: Individually controlled light points produce chasing, flowing, rainbow, gradient and multi-zone colour scenes.
- 10 m / 20 LED standard configuration: The selected Alibaba configuration uses 20 point lights across a 10 m run with a listed nominal system power of 10 W.
- SMD 5249 wide-beam LEDs: The optical design spreads colour across the wall and soffit instead of creating only a narrow visible dot.
- Smart app and remote control: Adjust colour, brightness, effect speed, schedules and preset scenes using the specified controller package.
- Music-sync and DIY scenes: Create event-specific sequences or synchronise dynamic lighting with music for seasonal and entertainment applications.
- Permanent quick-clip installation: Linkable modules and mounting points support clean alignment along eaves and building outlines.
- Low-voltage platform: The lighting system operates at DC24V; the correct power supply, cable length and circuit loading are confirmed for each project.
Standard Configuration and Project Lengths
| Configuration | LED Points | Use |
|---|---|---|
| 10 m | 20 LEDs | Standard selected configuration |
| 15 m | 24 or 30 LEDs | Image-listed project options |
| 30 m | 60 LEDs | Extended roofline |
| 45 m | 90 LEDs | Villa or commercial façade |
| 60 m | 120 LEDs | Large outline-lighting project |
Available lengths, point spacing, extension cables, controller capacity and power distribution must be confirmed against the building layout before production.
Technical Specifications
| Model | PL |
|---|---|
| Input Voltage | DC24V low-voltage lighting system |
| Standard Length | 10 m |
| LED Quantity | 20 LED points |
| Nominal Power | 10 W for the selected configuration |
| Light Source | High-brightness SMD 5249 RGBIC LED |
| Light Colour | RGBIC, up to 16 million app-selectable colours |
| Housing Material | Weather-resistant plastic point-light housing |
| IP Rating | IP65 standard listing; IP67 customization is shown and requires configuration confirmation |
| Control | Smart app, handheld remote, music sync, preset scenes and DIY effects |
| Dimming | Supported |
| CRI | Ra 90 listed |
| Rated Lifespan | 50,000 hours listed |
| Warranty | 2 years |
| Certifications | CE, RoHS, EMC and LVD listed; documents must match the final configuration |
| Standard MOQ | 10 pieces |
App, Remote and Music-Sync Control
The illustrated control platform supports time scheduling, brightness adjustment, effect-speed adjustment, scene modes, DIY colour layouts and music-responsive programmes. The product imagery also shows 90 preset festival patterns. App name, Wi-Fi frequency, voice-control compatibility and available functions depend on the confirmed controller version.
Permanent Outdoor Installation
The standard product is listed as IP65 for outdoor use. Reliable year-round performance also depends on waterproof connectors, protected power equipment, correct cable routing, drainage and secure mounting. IP67 customization is advertised with a 10-piece minimum order, but the final protection rating must be stated on the approved specification and matched by every system component.
For a broader overview of product families and project applications, visit our outdoor decorative lighting product centre. Buyers comparing point spacing, module construction and system lengths can also review our 24V RGBIC permanent outdoor roofline lights.
Recommended Applications
- Residential villas, houses and permanent soffit lighting
- Hotels, resorts, restaurants and cafés
- Retail stores, shopping centres and commercial façades
- Christmas and year-round building-outline displays
- Entertainment venues and event architecture
- Landscape buildings, pavilions and hospitality projects
OEM and Project Customization
Available project options include total run length, LED quantity and spacing, RGB or RGBW module selection, housing and cable colour, IP rating, controller platform, preset programmes, music-sync functions, extension cables, waterproof connectors, power supplies, mounting accessories, OEM branding and export packaging. Chengyi Lighting can also support AGi32 lighting planning, AutoCAD layouts and drawing-based customization.
Production Lead-Time Reference
The listing gives a reference production time of 7 days for 1–100 pieces and 12 days for 101–1,000 pieces. Final lead time depends on the approved layout, controller, customization, quantity, packaging and production schedule.
Information Required for a Quotation
Please provide the total roofline length, building drawing or site photos, preferred LED spacing, required colour effects, controller method, quantity, destination country and delivery deadline. Contact Chengyi Lighting for a project-specific circuit plan, accessory list and quotation.
