PRODUCT DETAILS

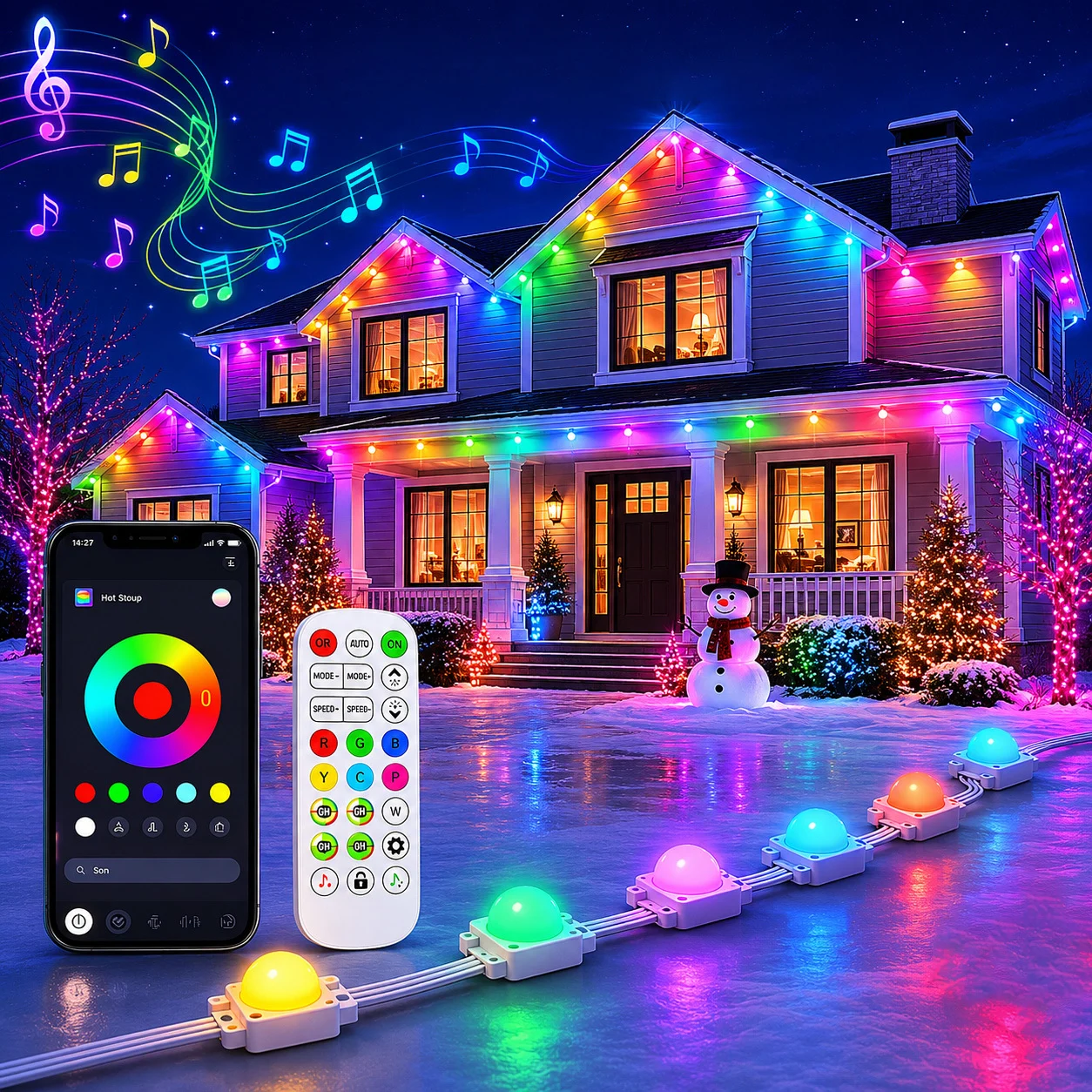

24V RGBIC Music Sync Permanent Eave Lights
Chengyi Lighting’s 24V RGBIC permanent eave lights create dynamic, individually controlled colour along rooflines, soffits and building outlines. The IP67 system combines multi-colour RGBIC effects with music-sync, chasing and running-flow programmes for permanent residential, hospitality and commercial decoration projects.
This is a dedicated option in our Eave Lights collection, available in 5 m / 25 LED, 10 m / 50 LED and 20 m / 100 LED listed configurations. It uses a linkable DC24V architecture; larger runs are engineered according to the approved building layout.
Product Highlights
- RGBIC dynamic colour: Multi-colour points create chasing, running, flowing and programmed lighting effects.
- Music synchronisation: Compatible controller programmes can respond to music for events, holidays and entertainment spaces.
- IP67 sealed outdoor system: Listed as rainproof and sealed for permanent exterior eave and roofline installation.
- Low-voltage DC24V: Project-safe low-voltage input with power distribution planned for the final run length.
- PC housing and white flat PVC cable: Durable point-light body with a clean cable route for roofline applications.
- Plug-linkable runs: Connect multiple sets while confirming controller capacity, voltage drop and power injection for each project.
Listed Configurations
| Length | LED Points | Use |
|---|---|---|
| 5 m / 16.4 ft | 25 LEDs | Short eaves and entry features |
| 10 m / 32.8 ft | 50 LEDs | Standard residential roofline |
| 20 m / 65.6 ft | 100 LEDs | Extended façade and commercial outline |
Technical Specifications
| Model | CY EL |
|---|---|
| Input Voltage | DC24V |
| Light Source | RGBIC multi-colour dynamic LED point lights |
| Power | 0.5W per LED point |
| Luminous Flux | 25 lm listed |
| Material | PC lamp body with white flat PVC cable |
| IP Rating | IP67 rainproof sealed outdoor rated |
| Control | App and remote controller package; music sync, chasing, running and flow effects |
| Connection | Plug-linkable multiple sets |
| CRI | Ra 80 listed |
| Rated Life | 50,000 hours listed |
| Working Temperature | -20°C to 50°C |
| Warranty | 1 year listed |
| MOQ | 30 sets |
Project Design and Installation
The listing supports AutoCAD layout, lighting and circuitry design. Before production, Chengyi Lighting confirms roofline measurement, point spacing, controller choice, cable routing, power-supply position, power injection, mounting method and connector protection. For a different roofline-light format, see our RGBIC chasing eave roofline lights.
Applications
- Permanent house, villa and apartment rooflines
- Hotel, resort, restaurant and café soffits
- Commercial façades, retail stores and shopping centres
- Christmas, holiday and year-round building displays
- Outdoor entertainment, event and hospitality architecture
OEM and Custom Supply
Available project options include total length, LED quantity and spacing, controller package, effects, cables, power supplies, extension connectors, mounting accessories, OEM branding and export packaging. Visit our outdoor decorative lighting product centre or contact Chengyi Lighting with drawings or site photos for a quotation.
